Kadee 28 20-Series Couplers - Medium Centerset (HO), 2 pair

View larger

Display all pictures

20-Series Couplers - Medium Centerset - 2 pair – HO - Kadee 28

Reference: 28

Condition: New product

This product is no longer in stock

Notify me when available

Write a review

Send to a friend
Send to a friend

20-Series Couplers - Medium Centerset - 2 pair – HO - Kadee 28
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Data sheet

Gauge	HO

More info

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#28 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

The #28 Coupler is the plastic equivalent to the NO.5® Metal Coupler.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

HO-Scale

Package Includes:

(2) Pair #28 Plastic Shank Couplers - Medium Centerset Shank
(2) Pair #634 Centering Spring NO.5® Style
(2) Pair 055" ID & .100" ID Bushing/Sleeves
(2) Pair #212 Talgo Truck Adaptors
(2) Pair #213 Gearboxes
(2) Pair #232 Gearboxes
(2) #622 Knuckle Springs

#28 Plastic Coupler Features:

Material	- Metal Knuckle, Plastic Coupler Shank
Shank Length	- Medium (19/64") (center hole to back of coupler head)
Coupler Offset	- Centerset
Knuckle Spring	- #622
Centering System	- Standard Shank
Centering Spring	- #634 Centering Spring NO.5® Style
Head	- Standard Head
Works In Place of	- NO.5®, #58, #118, #119, #148, #158, most medium centerset "clone" couplers
Works With	- #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

#212 Talgo Truck Adaptors:

Material	- Insulated Plastic
Works With	- NO.5®, #58, 20-Series and all Whisker® Couplers

#213 Plastic Draft Gearboxes:

Material	- Insulated Plastic
Dimensions	- 25/64"L x 5/16"W x 3/32"H
Works With	- NO.5®, #58, 20-Series and all Whisker® Couplers

#232 Plastic Draft Gearboxes & Lids Features:

Material	- Insulated Plastic
Dimensions	- 29/64"L x 19/64"W x 7/64"H
Works With	- NO.5®, #58, 20-Series and all Whisker® Couplers

#28 with a #212 Talgo Truck Adaptor. Mounting Specifications:

Centerline	- 25/64"
Trip Pin Height	- 1/32"

#28 in a #213 monted on bottom. Mounting Specifications:

Mounting Height	- 29/64"
Centerline	- 25/64"
Trip Pin Height	- 1/32"
Center Hole	- 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

#28 in a #213 monted on top. Mounting Specifications:

Mounting Height	- 23/64"
Centerline	- 25/64"
Trip Pin Height	- 1/32"
Center Hole	- 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

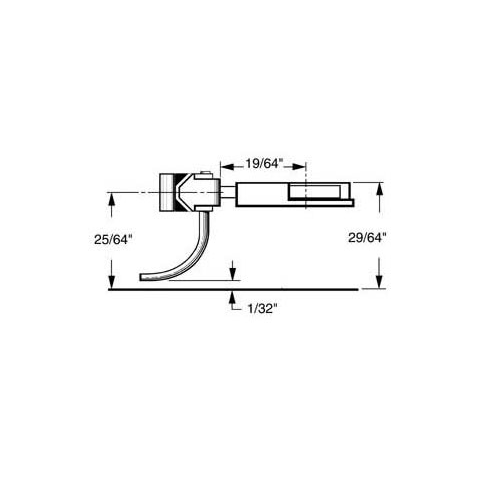

#28 in a #232 Mounting Specifications:

Mounting Height	- 29/64"
Centerline	- 25/64"
Trip Pin Height	- 1/32"
Center Hole	- 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes	- 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
