20-Series Couplers - Short Overset 2 pair – HO - Kadee 25

25

New product

$6.85 Tax excluded

Add to wishlist

Data sheet

GaugeHO

More info

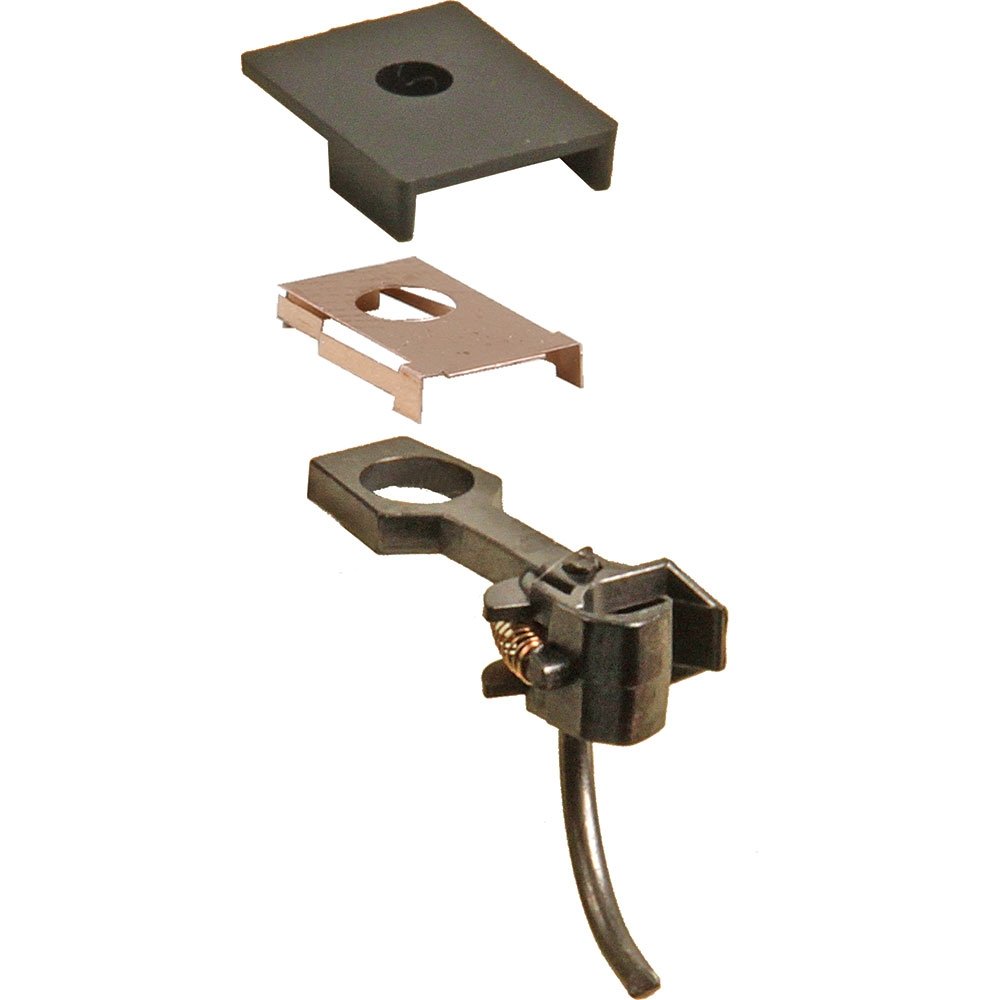

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#23 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

HO-Scale

Package Includes:

  • (2) Pair #23 Plastic Shank Couplers - Short Centerset Shank
  • (2) Pair #634 Centering Spring NO.5® Style
  • (2) Pair 055" ID & .100" ID Bushing/Sleeves
  • (2) Pair #212 Talgo Truck Adaptors
  • (2) Pair #213 Gearboxes
  • (2) Pair #232 Gearboxes
  • (2) #622 Knuckle Springs



#23 Plastic Coupler Features:

Material

 -   Metal Knuckle, Plastic Coupler Shank

Shank Length

 -   Short (1/4") (center hole to back of coupler head)

Coupler Offset

 -   Centerset

Knuckle Spring

 -   #622

Centering System

 -   Standard Shank

Centering Spring

 -   #634 Centering Spring NO.5® Style

Head

 -   Standard Head

Works In Place of

 -  #143, short centerset "clone" couplers

Works With

 -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes



#212 Talgo Truck Adaptors:

Material

 -   Insulated Plastic

Works With

 -   NO.5®, #58, 20-Series and all Whisker® Couplers



#213 Plastic Draft Gearboxes:

Material

 -   Insulated Plastic

Dimensions

 -   25/64"L x 5/16"W x 3/32"H

Works With

 -   NO.5®, #58, 20-Series and all Whisker® Couplers



#232 Plastic Draft Gearboxes & Lids Features:

Material

 -   Insulated Plastic

Dimensions

 -   29/64"L x 19/64"W x 7/64"H

Works With

 -   NO.5®, #58, 20-Series and all Whisker® Couplers

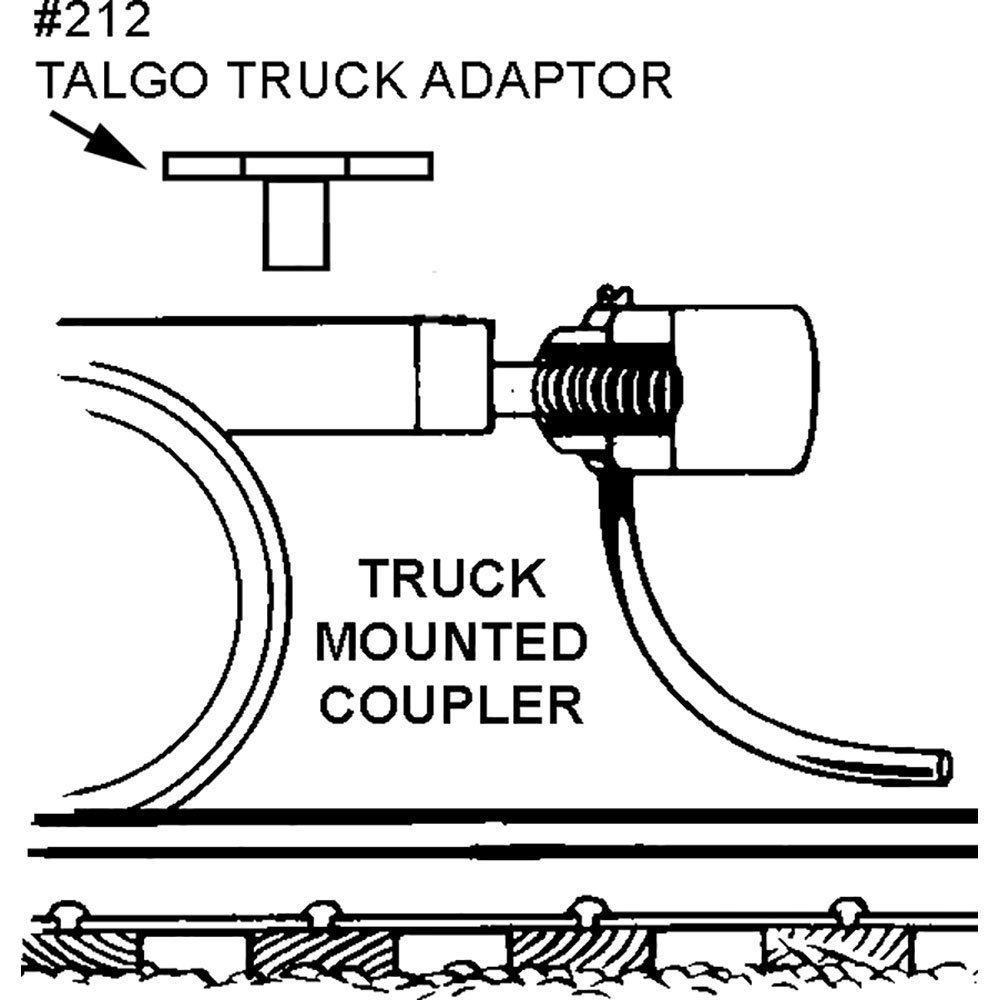

#23 with a #212 Talgo Truck Adaptor. Mounting Specifications:

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"



#23 in a #213 monted on bottom. Mounting Specifications:

Mounting Height

 -   29/64"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)



#23 in a #213 monted on top. Mounting Specifications:

Mounting Height

 -   23/64"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)



#23 in a #232 Mounting Specifications:

Mounting Height

 -   29/64"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Side Holes

 -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
