Metal Couplers - Medium Centerset 2 pair – HO - Kadee 9

9

New product

$6.28 Tax excluded

Add to wishlist

Data sheet

GaugeHO

More info

Truck Talgo Mount Coupler for Early Tyco Metal Trucks & Craftsman Kits

Metal Coupler with insulated Draft Gear Box and Lid, bronze Centering Spring and side and smaller center screw mounting hole used for truck mounting situations, similar to NO.5® Coupler.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Two pair per package

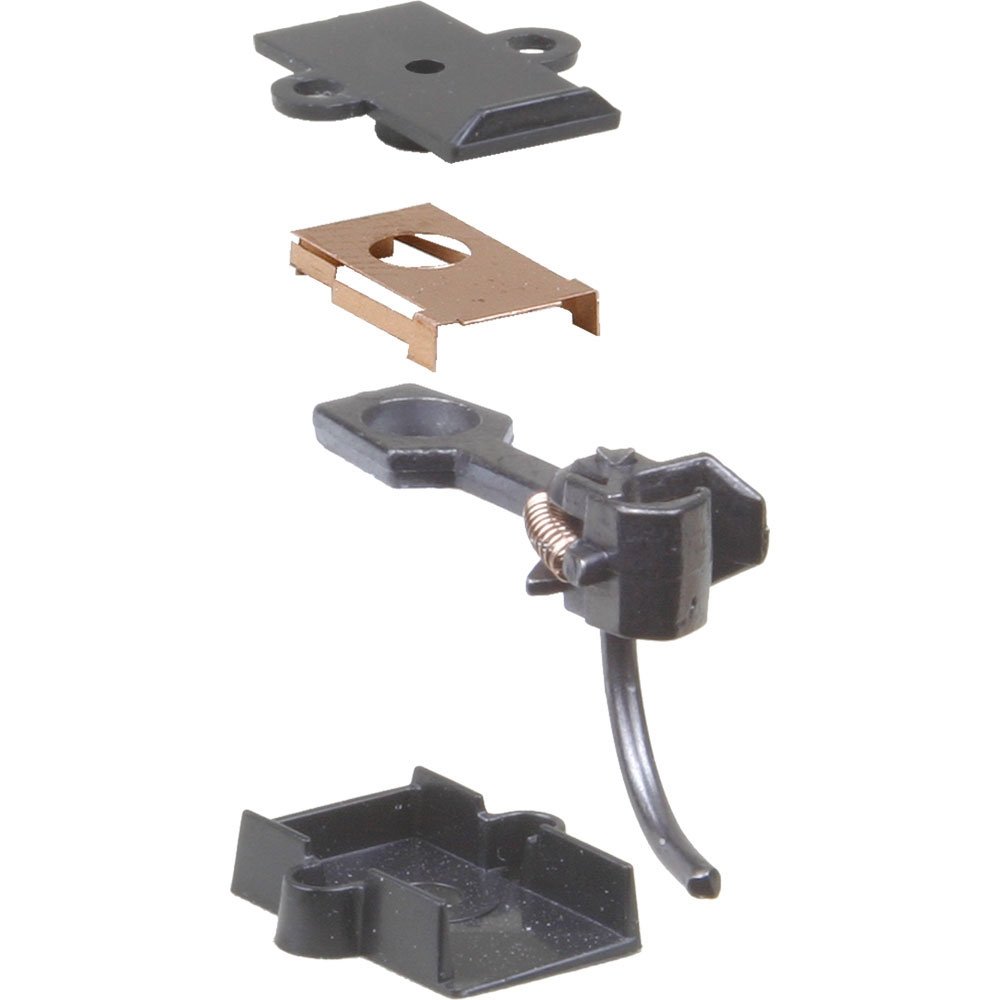

Package Includes:

  • (2) Pair NO.5® Metal Couplers - Medium Centerset Shank
  • (2) Pair #634 Centering Spring NO.5® Style
  • (2) Pair #9 draft Gearboxes
  • (2) #622 Knuckle Springs



NO.5® Metal Coupler Features:

Material

 -   Metal

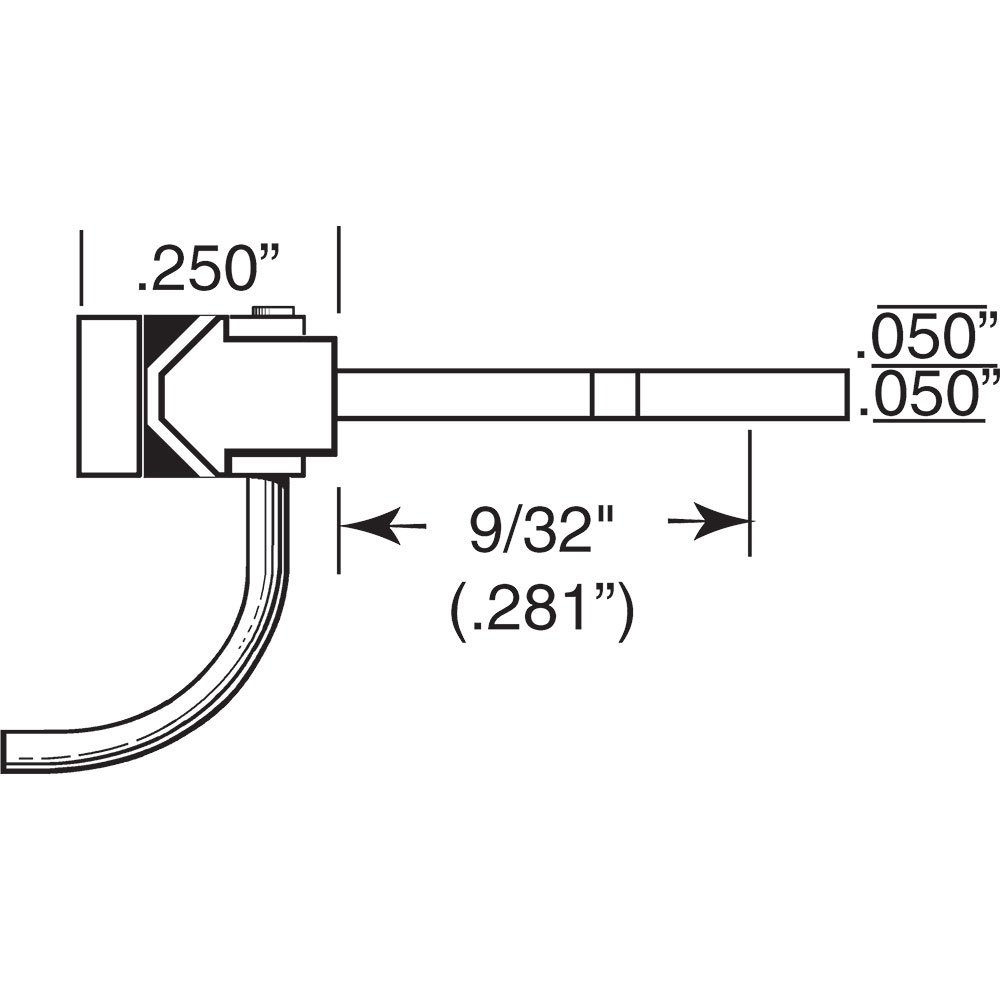

Shank Length

 -   Medium (9/32") (center hole to back of coupler head)

Coupler Offset

 -   Centerset

Knuckle Spring

 -   #622

Centering System

 -   Standard Shank

Centering Spring

 -   #634 Centering Spring NO.5® Style

Head

 -   Standard Head



#9 Plastic Draft Gearboxes & Lids Features:

Material

 -   Insulated Plastic

Dimensions

 -   29/64"L x 19/64"W x 7/64"H

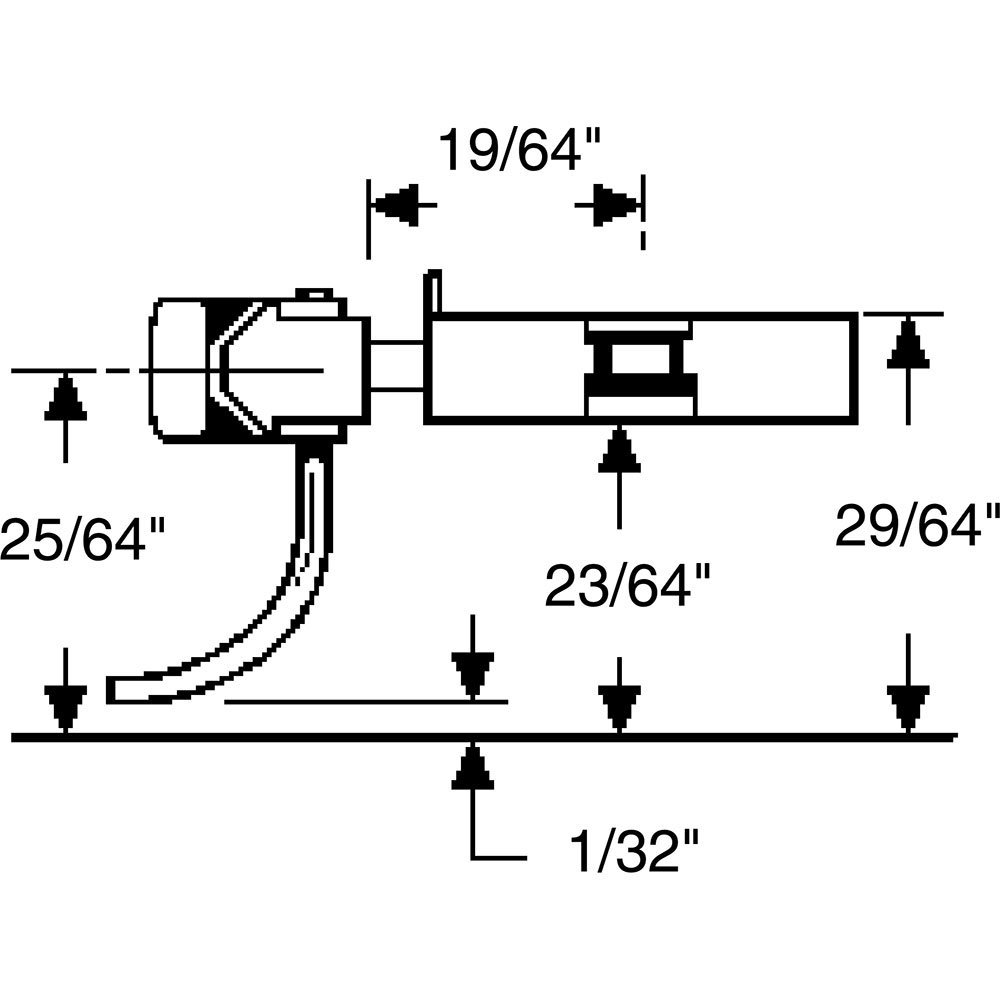

Mounting Specifications:

Mounting Height -
top of gearbox

 -   29/64"

Mounting Height -
bottom of gearbox

 -   21/64"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -  0-48 Self-Tapping are the most commonly used. (Screw length will vary)

Side Holes

 -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
